S75 brick spot light for machine vision

Data Sheet

Product information including data sheets has been verified as accurate at the time of completion. It is subject to change without notification.

Product Advantages

  • SmartVisionLink™-enabled for easy intensity adjustment
  • MultiDrive™ provides both OverDrive™ and continuous mode functionality
  • Built-in status indicators
  • Available in short wave infrared
  • Compact, low profile footprint

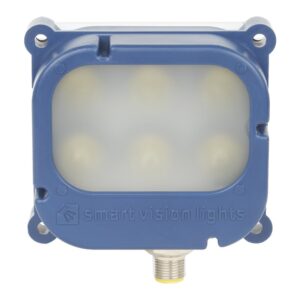

S75G2 Brick Light


The S75G2 spot light features an integrated Multi-Drive driver that can produce up to 300,000 lux. NPN or PNP triggers can be used to control the light for either OverDrive or continuous operation. Control light intensity via 1 – 10 VDC analog intensity line or remotely using SmartVisionLink .

Product Details

  • Illumination Type: Bright Field, Dark Field, Direct Lighting
  • IP Rating: IP50
  • Max Working Distance: 2000 mm
  • Min Working Distance: 300 mm
  • Mode: Multi-Drive™
  • SmartVisionLink: Compatible
