RTF200 machine vision ring light

Data Sheet

CAD Drawings

Product information including data sheets has been verified as accurate at the time of completion. It is subject to change without notification.

Product Highlights

  • Three independently tunable beam angle channels
  • Ability to switch and mix channels to adjust working distance and illumination angle
  • SmartVisionLink™-enabled to allow for easy intensity adjustment in both continuous and OverDrive™strobe modes
  • Ability to control intensity for the entire light or for each of the three LED channels if using BTM-1000 Bluetooth Module
  • Multi-Drive™ provides both OverDrive™ and continuous mode functionality.

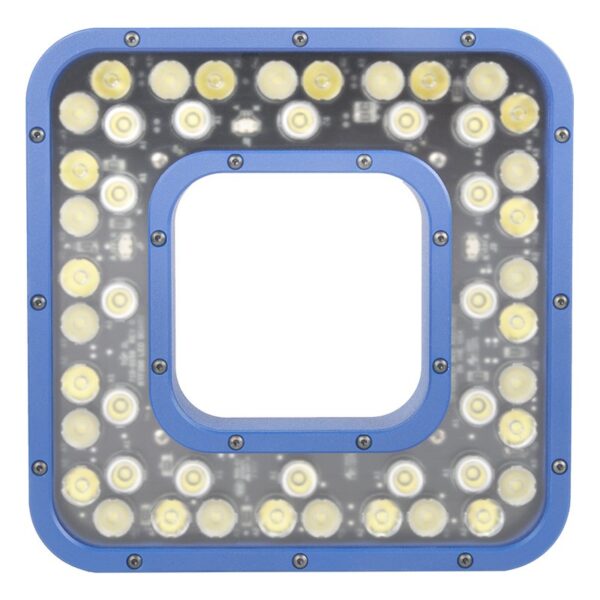

RTF200 Ring Light


The RTF200, a SmartVisionLink™-enabled light, features three independently adjustable beam angle lighting channels. When used with the BTM-1000 Bluetooth accessory and the SmartVisionLink™ app, lighting channels can be set to produce unique beam-angle combinations – optimizable for many different applications over a wide range of working distances and field of view requirements.

Product Details

  • Illumination Type: Bright Field, Direct Lighting
  • IP Rating: IP65
  • Max Working Distance: 2000 mm
  • Min Working Distance: 200 mm
  • Mode: Multi-Drive™
  • SmartVisionLink: Compatible
Configuration number:
