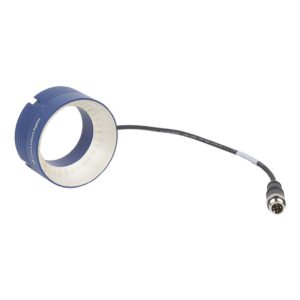

RM75-4Z (KIT) Mini Ring Light with Zones


The compact and powerful RM75-4Z Mini Ring Light is a low-angle ring light that works best for dark field ring applications. The light can also be used for radial illumination. The RM75-4Z has four zones, making it a quadrant light that can have each individual zone controlled independently of one another. The 4ZMD-250 is an external driver that permits control of up to four separate light zones either independently or simultaneously, in any combination. The 4ZMD has independent intensity controls and built-in Multi-Drive, allowing a range to be set from 10%-100% for continuous operation or OverDrive strobe mode. The RM75-4Z KIT includes a RM75-4Z mini ring light and a 4ZMD-250 external driver.

The Right Light for Your Application

Smart Vision Lights provides a 45-day Consignment Program that is used for testing light(s) on vision applications. We also offer application and lighting evaluations. Contact us to speak with one of our lighting specialists.

Contact Us

Product Details

  • Illumination Type: Dark Field, Radial
  • IP Rating: IP50
  • Min Working Distance: 50 mm
  • Max Working Distance: 200 mm
  • Mode: Multi-Drive™
Configuration number: RM75-4Z

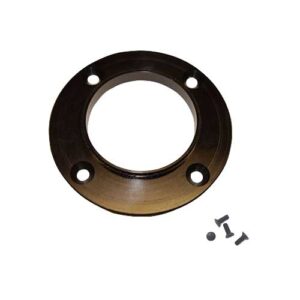

Add Accessories
