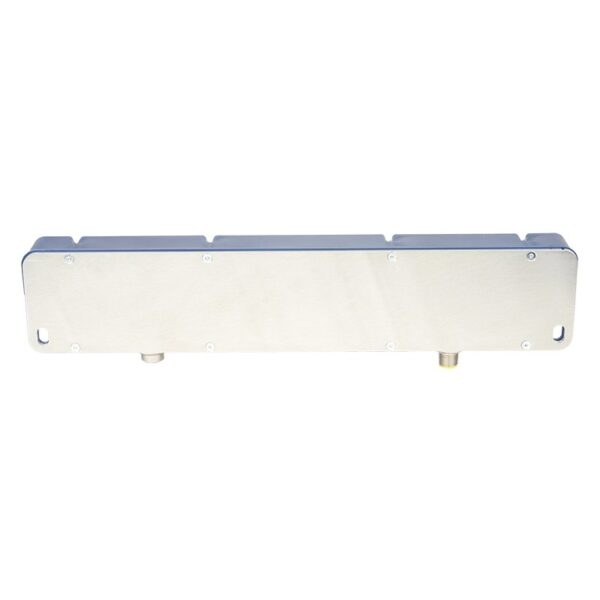

L300G2-Two

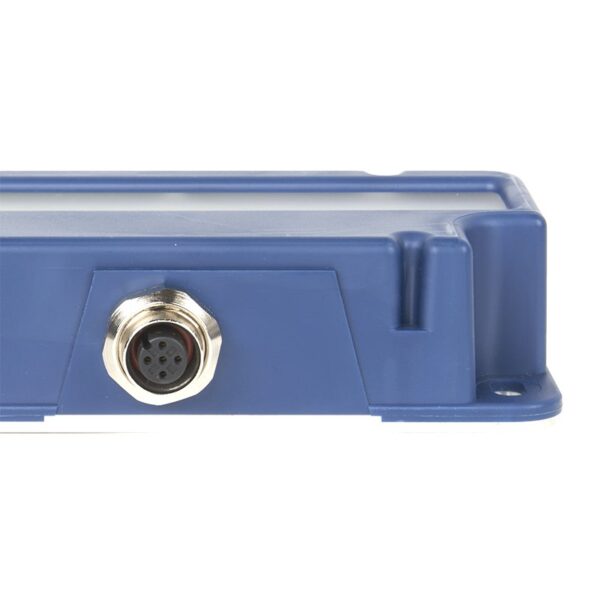

L300G2-Three
L300G2-Four
L300G2-Five

Data Sheet

CAD Drawings

Product information including data sheets has been verified as accurate at the time of completion. It is subject to change without notification.

Product Advantages

  • SmartVisionLink™-enabled for easy intensity adjustment
  • Daisy-chain up to six L300G2 linear lights using a standard 5-pin M12 jumper cable
  • Multi-Drive™ provides both OverDrive™ and continuous mode functionality
  • Built-in status indicators
  • Lowest profile full-sized linear light

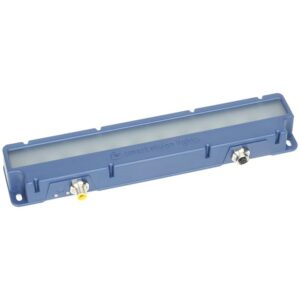

L300G2 Linear Light

Description

The L300G2 linear light features an integrated Multi-Drive driver that can produce up to 390,000 lux. NPN or PNP triggers can control the light for either OverDrive or continuous operation. Control light intensity via 1 – 10 VDC analog intensity line or remotely using SmartVisionLink. Daisy-chain up to six L300G2 lights in series using a standard 5-pin M12 jumper cable.

Product Details

  • Illumination Type: Bright Field, Dark Field, Direct Lighting
  • IP Rating: IP50
  • Max Working Distance: 2000 mm
  • Min Working Distance: 300 mm
  • SmartVisionLink: Compatible
  • Mode: Multi-Drive™
