DDL-100 Dome Light

Description

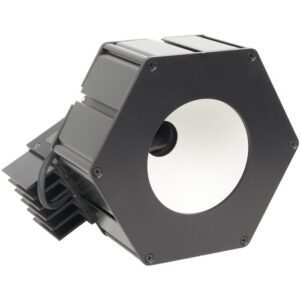

The DDL-100 is a diffuse dome light with a 75 mm viewing area designed for reading barcode, imperfections/rounded/highly reflective products or for inspecting products with an even, uniform, and repeatable light intensity. The DDL-100 has been designed with simplicity and functionality in mind. The DDL-100 features Multi-Drive, which allows the user to operate the light in continuous operation or OverDrive strobe mode, depending on the wiring method. NPN and PNP trigger signal input and a built-in 1-10VDC analog intensity control allows for maximum versatility. The industry-standard 5-pin M12 connector makes for easy installation.

The Right Light for Your Application

Smart Vision Lights provides a 45-day Consignment Program that is used for testing light(s) on vision applications. We also offer application and lighting evaluations. Contact us to speak with one of our lighting specialists.

Contact Us

Product Details

  • Illumination Type: Dome "Light Tent"
  • IP Rating: IP50
  • Min Working Distance: 25 mm
  • Max Working Distance: 100 mm
  • Mode: Multi-Drive™
Configuration number: DDL-100
