Cognex ODDM Lights (DataMan)

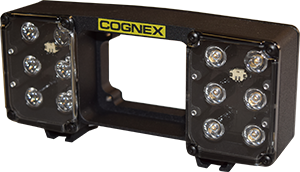

DataMan ODDM-3XT

Engineered specifically for Cognex DataMan bar coding systems, the ODDM-3XT mounts directly to multiple Cognex cameras and supports the laser aimer and laser profiler accessories for quick, intuitive alignment. It features 12 high-intensity OverDrive LEDs — available in either standard or wide projection — with an integrated high-pulse driver for complete control. Powered directly by external light controls, the ODDM-3XT matches the strobe speeds of the specific Cognex camera to which it is mounted.

To facilitate fast, flexible integration, the module also features standard T-slots, an optional linear polarizer kit, and a 5-pin M12 connector. With an operating temperature of -18° to 40° C; an IP65 rating; and CE, RoHS, and IEC 62471 compliance, the ODDM-3XT can safely operate in a variety of production and testing environments.

*Red, Red wide, and white only available exclusively through Cognex.

DataMan ODDM-3XT

  • Built-in SMART driver
  • Mounts directly to multiple Cognex cameras
  • Supports Laser Aimer accessory
  • Powered directly from Cognex DataMan camera’s external light control
  • Standard T-Slots for Mounting

ODDM DataMan 503

  • Built-in SMART driver
  • Mounts Directly to DataMan 503 Camera
  • SafeStrobe Technology ensures protected operations of LED’s
  • Industry Standard M12 Quick Disconnect
  • High Speed >> Fast Response (up to 1000 Strobes Per Second)

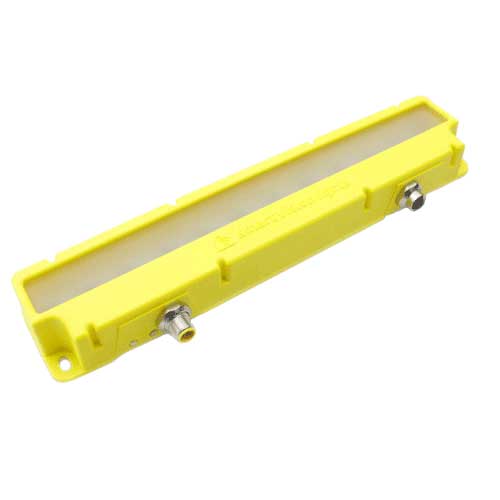

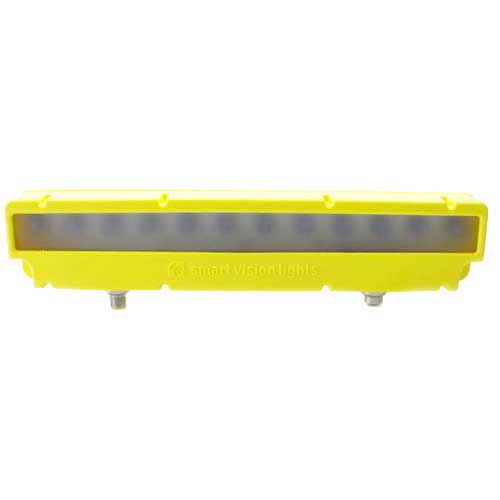

ODDM DataMan L300

  • Built-in SMART driver
  • SafeStrobe Technology ensures protected operations of LED’s
  • Industry Standard M12 Quick Disconnect
  • High Speed >> Fast Response (up to 1000 Strobes Per Second)
  • Works with the Cognex 300 and 503 series cameras

ODDM DataMan L300-2X

  • Connects directly to Cognex Camera Reader
  • Powered Directly from DataMan Camera
  • SafeStrobe Technology ensures protected operation of LEDs
  • 2X as many LEDs as the standard ODDM-L300
  • Industry Standard M12 Quick Disconnect
  • High Speed >> Fast Response

ODDM DataMan L300-2X-LPI

  • Connects directly to Cognex Camera Reader
  • Powered Directly from DataMan Camera
  • SafeStrobe Technology ensures protected operation of LEDs
  • 2X as many LEDs as the standard ODDM-L300
  • Industry Standard M12 Quick Disconnect
  • Installed polarizer for convenient linear polarization
  • High Speed >> Fast Response

ODDM DataMan S75

  • Built-in SMART driver
  • SafeStrobe Technology ensures protected operations of LEDs
  • Industry Standard M12 Quick Disconnect
  • High Speed >> Fast Response (up to 1000 Strobes Per Second)
  • Works with the Cognex 300 and 503 series cameras

ODDM DATAMAN S33

  • Connects directly to Cognex DataMan Reader
  • Powered Directly from DataMan External Light Control
  • SafeStrobe Technology ensures protected operation of LEDs
  • Industry Standard M12 Quick Disconnect
  • High Speed >> Fast Response

Mounting

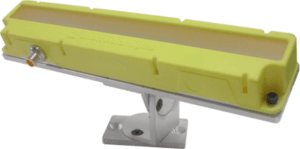

PB300-M5

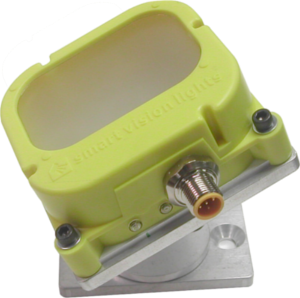

PB75-M5

Wiring

Wiring for an ODDM Camera to Single Light.

Wiring for Single ODDM Light

  • Direct Connection – Camera to Light
  • Standard 5 Pin M12
  • Straight Thru Cable – Male to Female
  • Yellow Cable ONLY

Download our DataMan Wiring & Products presentation

Required Yellow Cables

Part NumberLength
5PM12-J300300 mm Jumper
5PM12-J10001 meter Jumper
5PM12-J20002 meter Jumper

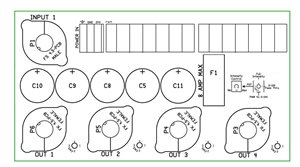

Wiring for an ODDM Camera to Multiple Lights
