Cognex In-Sight Cameras

In-Sight, Camera to Light, Cognex

Cognex In-Sight 7000 Camera Series (IS7000)

In-Sight L300

  • Built-in SMART driver
  • SafeStrobe Technology ensures protected operations of LEDs
  • Industry Standard M12 Quick Disconnect
  • High Speed >> Fast Response (up to 1000 Strobes Per Second)

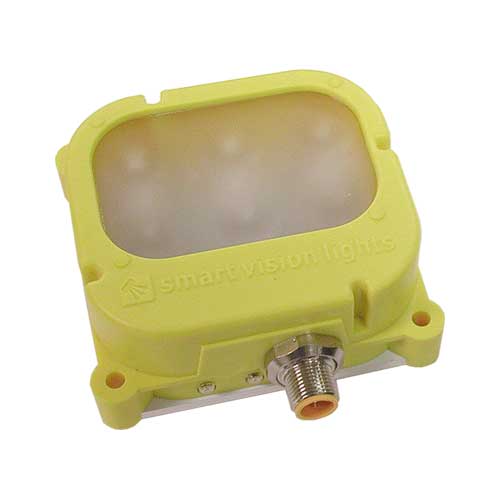

In-Sight S75

  • Built-in SMART driver
  • SafeStrobe Technology ensures protected operations of LEDs
  • Industry Standard M12 Quick Disconnect
  • High Speed >> Fast Response (up to 1000 Strobes Per Second)

EZ Mount Ring Lights

  • Can also be mounted by T-Slot with T-nut
  • High Output LED’s housed in small industrial housing
  • Built-in smart driver with NPN & PNP control
  • Intensity control by analog 0-10VDC or integrated pot
  • Industrial Standard M12 style quick disconnect

More information on the EZ Mount Ring Lights can be found on the EZ Mount Ring Light page.

COGNEX

Cognex In-Sight 5000 Camera Series

Cognex camera adapter mounts directly to In-Sight 5000 Camera Series using Adapter Part# DF55-46. (Excludes the 5604 or 5605 series camera.)

Adapter Data Sheet

Cognex In-Sight 5600/5705 Camera Series

Cognex camera adapter mounts directly to In-Sight 5600/5705 Camera Series using Adapter Part# DF60-46.

Adapter Data Sheet

Cognex In-Sight 7000 Camera Series

Cognex camera adapter mounts directly to In-Sight 7000 camera Series using CB-RS-IS7000

Adapter Data Sheet

IS7000 Gen2 Mounting Hardware

Wiring

Wiring for a Cognex In-Sight Camera to Single Light

Selecting the correct cable required is based on the Cognex camera generation. Cognex Gen1 cameras will use a 5PM12-Jxxxx-CTL. Cognex Gen 2 cameras will use a 5PM12-Jxxxx-CTL-NSB.

Cognex camera Gen1

The Cognex camera Gen1 uses the 5PM12-Jxxxx-CTL. This is a grey cable.

SVL Part NumberLength
5PM12-J300-CTL300 mm
5PM12-J1000-CTL1000 mm
5PM12-J2000-CTL2000 mm

Cognex camera Gen2

The Cognex camera Gen2 uses the 5PM12-Jxxxx-CTL-NSB. This is a black cable.

SVL Part NumberLength
5PM12-J300-CTL-NSB300 mm
5PM12-J1000-CTL-NSB1000 mm
5PM12-J2000-CTL-NSB2000 mm

Connecting Instructions

Instructions on how to connect Cognex In-Sight cameras/boards to Smart Vision Lights products.
